Setting Up Thrift Server for Yeedu

Overview​

This guide provides instructions for configuring a Yeedu Thrift Server to interact with a JDBC client. The Thrift Server enables executing SQL queries using various client applications, such as BI tools and SQL editors.

Prerequisites​

  • Operates exclusively in YEEDU mode of a cluster.
  • Supported Spark versions: 3.5.1 and 3.4.3.
  • Requires cluster association with a workspace.
  • Permissions required: CAN RUN, CAN EDIT, or CAN MANAGE on the workspace.

Configuration Steps​

Access the JDBC Section​

  • The JDBC section provides the necessary information to establish a connection.

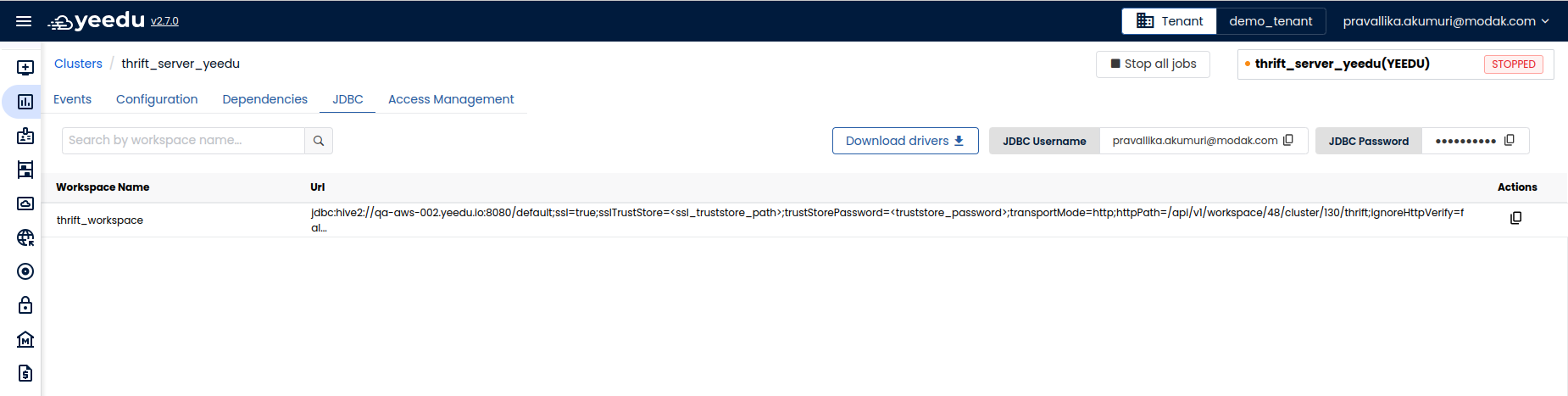

From Clusters Dashboard​

  1. Open the Clusters Dashboard in the Yeedu UI.
  2. Select a cluster from the list.
  3. Locate the JDBC section, which includes:
    • Workspace Name: Displays the workspace where the Yeedu Thrift Server will be created.
    • JDBC URL: The connection string used to interact with the Yeedu Thrift Server.
    • Download Drivers: Provides the custom Yeedu Thrift JAR file for JDBC tools like DBeaver.
    • JDBC Username and JDBC Password: Required for authenticating with the Yeedu Thrift Server.

thrift-setup

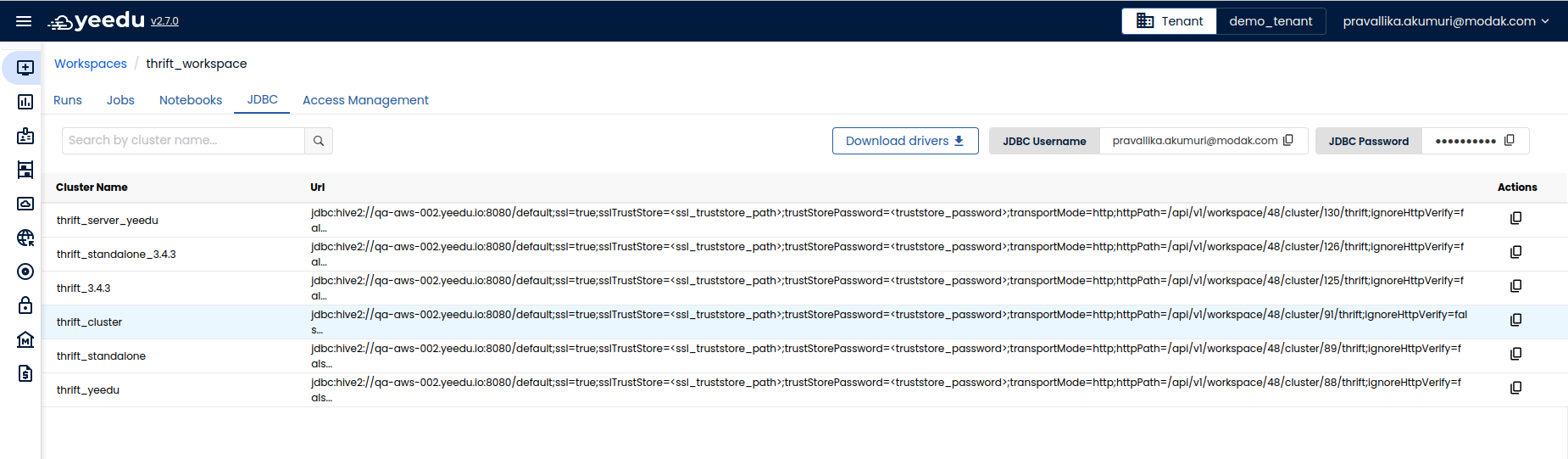

From Workspaces Dashboard​

  1. Open the Workspaces Dashboard in the Yeedu UI.
  2. Select a workspace from the list.
  3. Locate the JDBC section, which includes:
    • Cluster Name: Displays the cluster where the Yeedu Thrift Server will start.
    • JDBC URL: The connection string used to interact with the Yeedu Thrift Server.
    • Download Drivers: Provides the custom Yeedu Thrift JAR file for JDBC tools like DBeaver.
    • JDBC Username and JDBC Password: Required for authenticating with the Yeedu Thrift Server.

thrift-setup

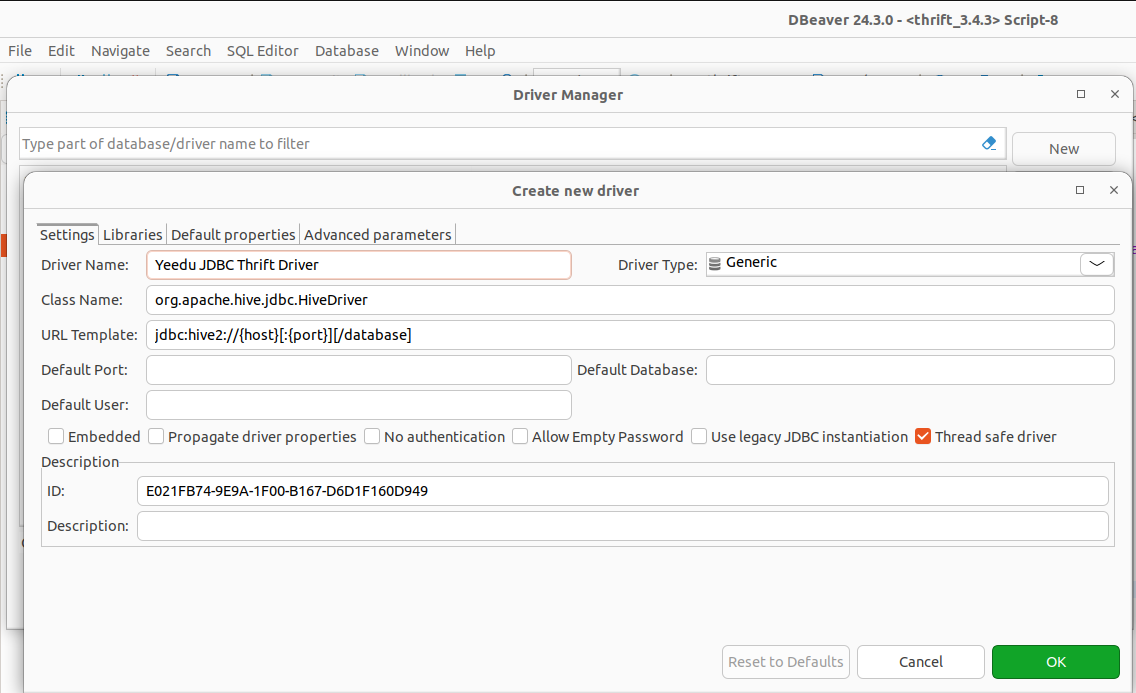

Configuring the Thrift Driver in DBeaver​

  1. Open DBeaver and navigate to Database > Driver Manager.
  2. Click New to create a new driver.
  3. Complete the following fields in the Settings tab:
    • Driver Name: Enter a name such as Yeedu JDBC Thrift Driver.
    • Class Name: Use org.apache.hive.jdbc.HiveDriver.
    • URL Template: Set it to jdbc:hive2://{host}[:{port}][/database].

thrift-setup

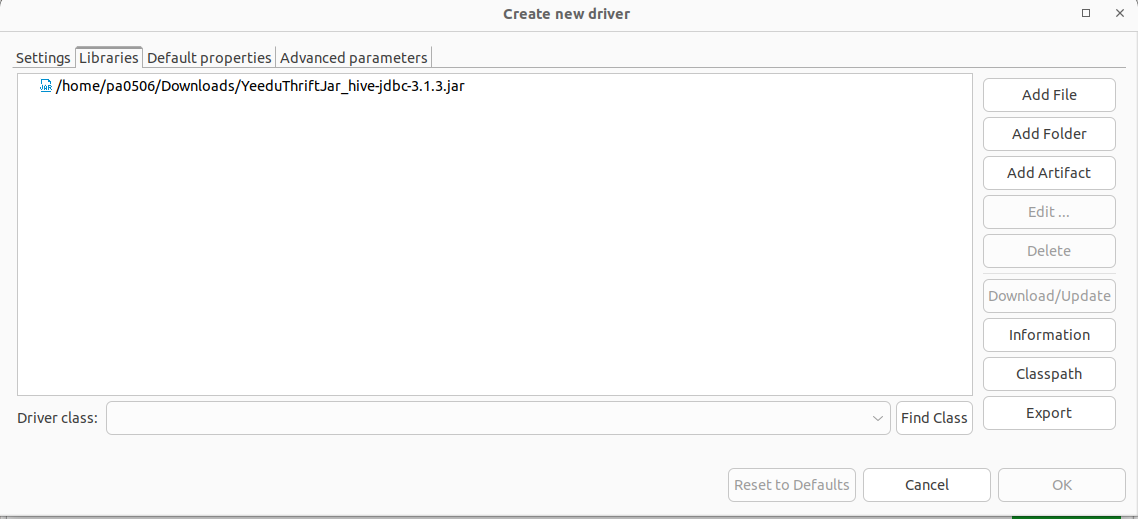

  1. In the Libraries tab, click Add File:
    • Navigate to the location where the Yeedu Thrift Driver JAR file was downloaded.
    • Select the JAR file (e.g., YeeduThriftJar_hive-jdbc-3.1.3.jar) and add it to the configuration.

thrift-setup

Establishing a Connection in DBeaver​

  1. Click New Database Connection in DBeaver.
  2. Select the configured driver and click Next.
  3. Use the JDBC URL from the JDBC Section. Example format:
jdbc:hive2://{hostname}:{port}/default;ssl=true;sslTrustStore=<trust_store_path>;trustStorePassword=<trust_store_password>;transportMode=http;httpPath=/api/v1/workspace/{workspace_id}/cluster/{cluster_id}/thrift;ignoreHttpVerify=false;maxJobStartTimeout=5;
  1. Copy the JDBC Username and JDBC Password from the Yeedu JDBC section and enter them as authentication credentials in DBeaver.

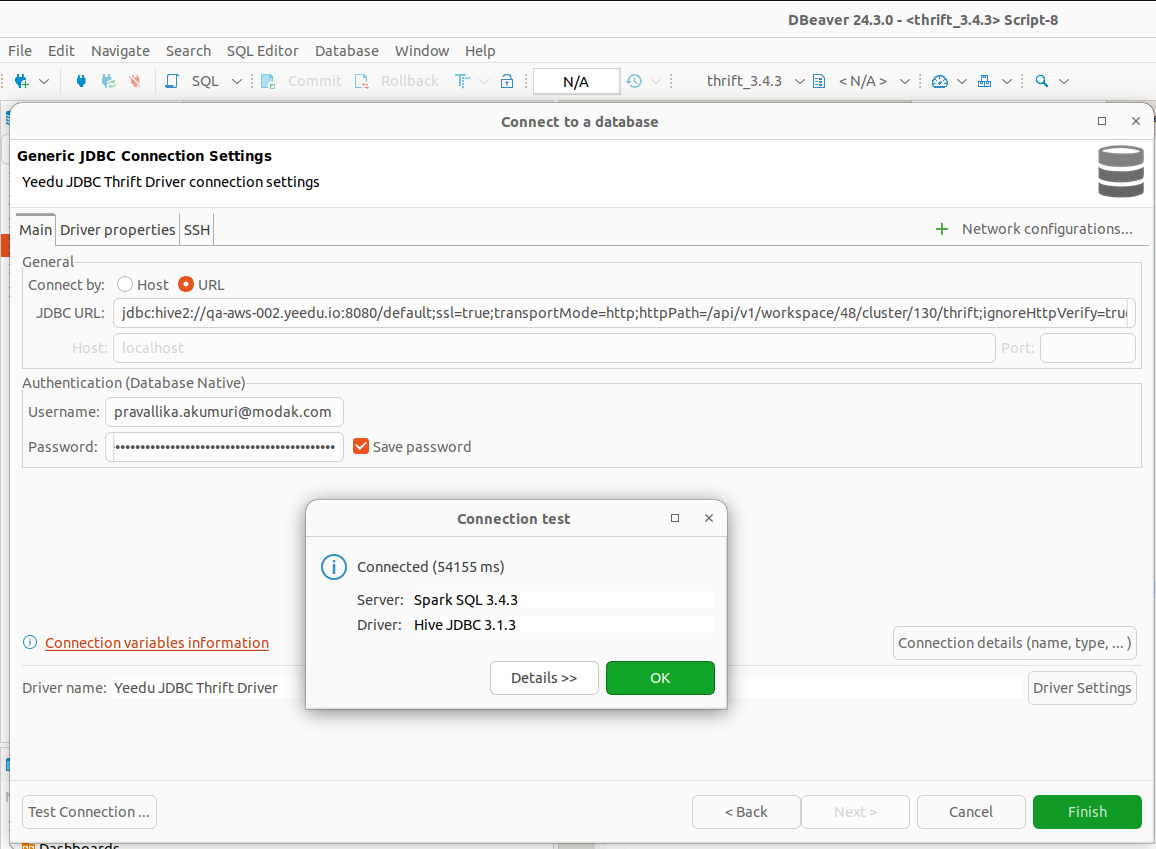

  2. Click Test Connection.If the connection test is successful, it confirms that the database connection is established.

thrift-setup

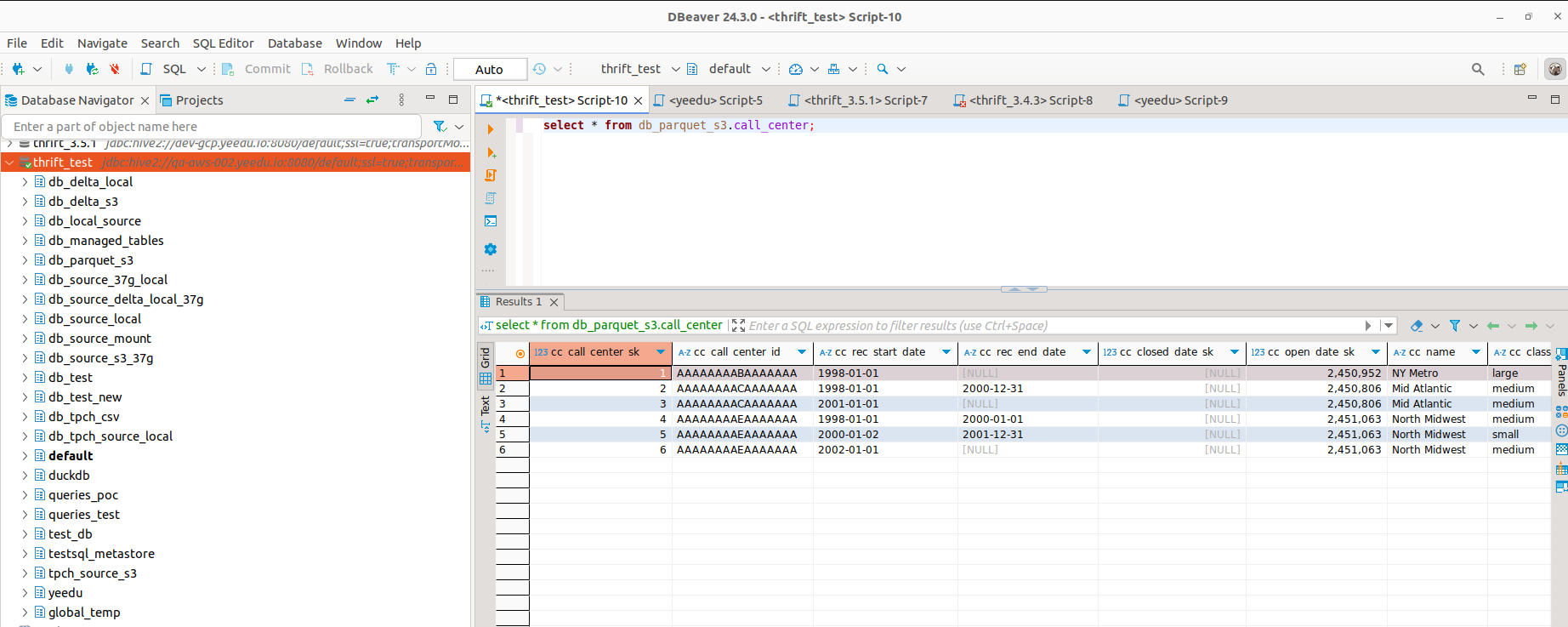

  1. You will then be able to open a SQL editor in DBeaver and start executing queries.

thrift-setup

Connection Options​

1. Unencrypted Connection​

Use the following JDBC URL for an unencrypted connection:

jdbc:hive2://{hostname}:{port}/default;transportMode=http;httpPath=/api/v1/workspace/{workspace_id}/cluster/{cluster_id}/thrift;maxJobStartTimeout=5;
  • maxJobStartTimeout: Defines the timeout for establishing a connection (default: 5 minutes).

2. SSL-Enabled Connection​

For secure connections, include ssl=true and specify the truststore:

jdbc:hive2://{hostname}:{port}/default;ssl=true;sslTrustStore=<trust_store_path>;trustStorePassword=<trust_store_password>;transportMode=http;httpPath=/api/v1/workspace/{workspace_id}/cluster/{cluster_id}/thrift;ignoreHttpVerify=false;maxJobStartTimeout=5;
  • sslTrustStore=<trust_store_path>: Specifies the location of the client's truststore file.
  • trustStorePassword=<trust_store_password>: The password required to access the truststore.

3. SSL with ignoreHTTPVerify=true​

Bypass truststore validation using the following JDBC URL:

jdbc:hive2://{hostname}:{port}/default;ssl=true;transportMode=http;httpPath=/api/v1/workspace/{workspace_id}/cluster/{cluster_id}/thrift;ignoreHTTPVerify=true;maxJobStartTimeout=5;
  • Parameters sslTrustStore and trustStorePassword are not required in this configuration.
