Notebooks

The Notebook feature offers an interactive environment that supports real-time coding, data analysis, and collaborative project work. It is designed to handle programming languages such as Python and Scala.

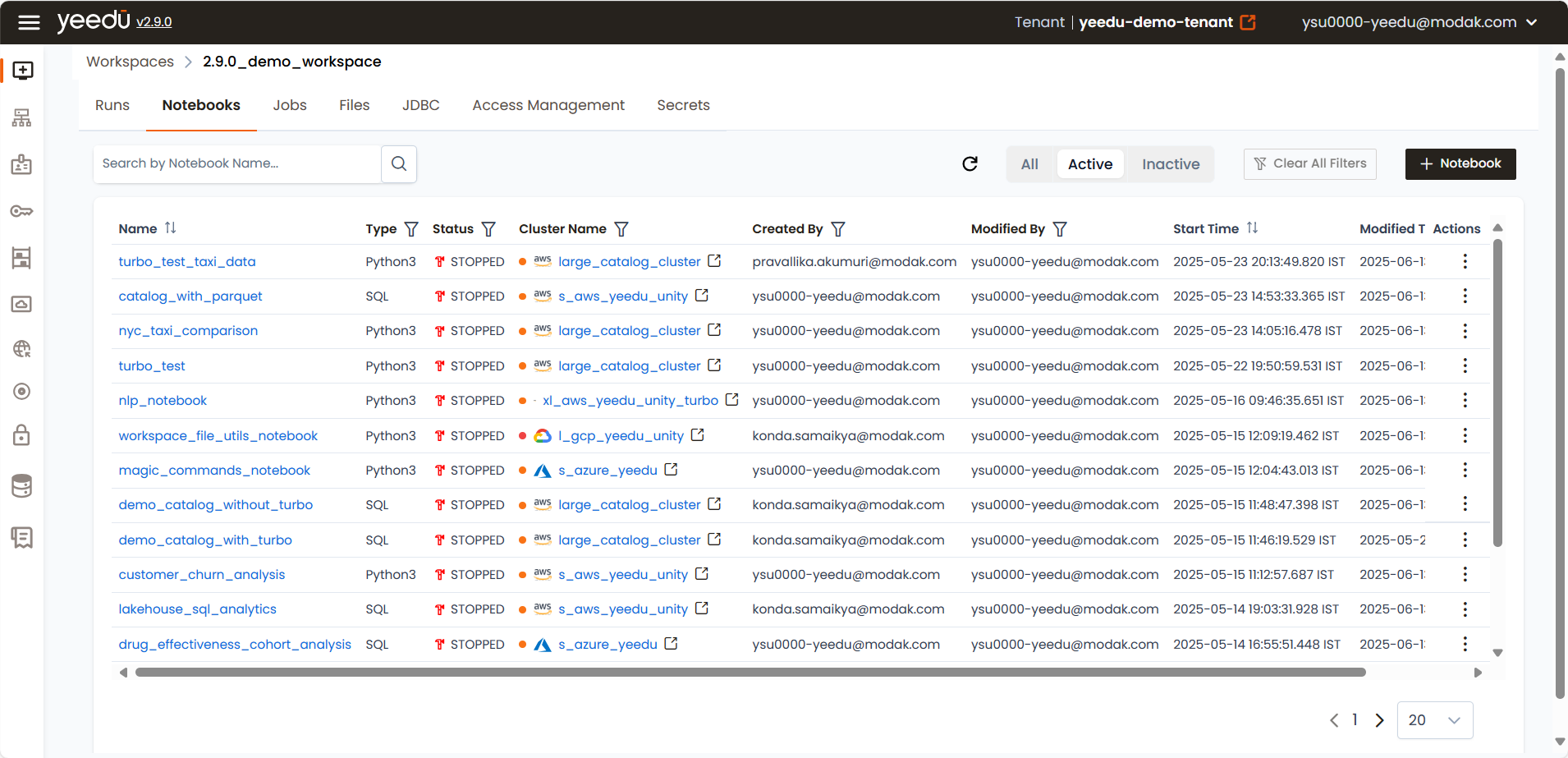

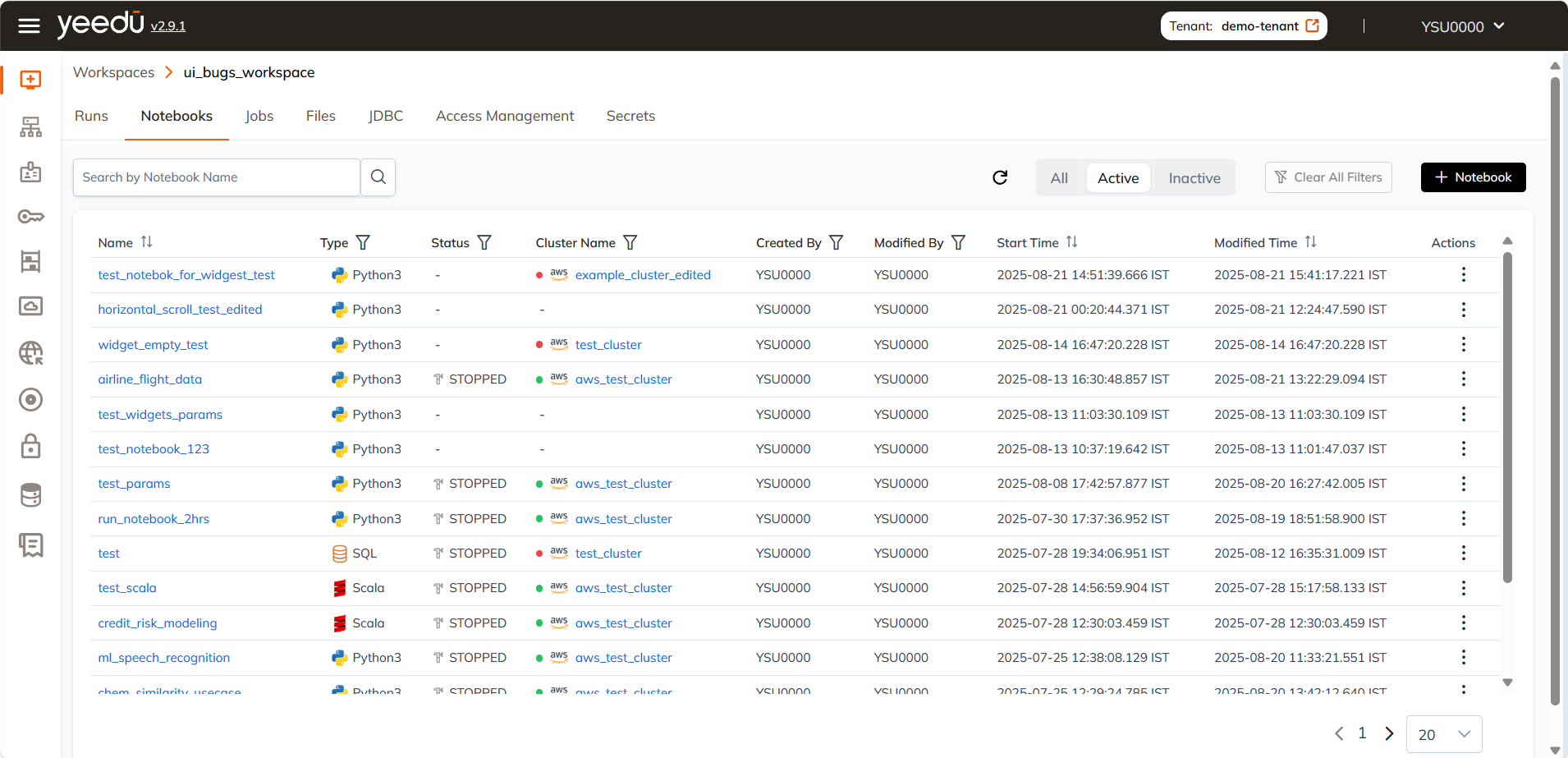

• Name: Displays the name of all notebooks present in the workspace.
• Type: Indicates the type of notebook. There are 2 types of notebooks in Yeedu: Python3 and Scala.
• Status: Displays the current state of the notebooks.
• Cluster: Shows information about the cluster associated with the notebook.
• Created By: Indicates the name of the user who created the notebook.
• Modified By: Indicates the name of the user who last modified the notebook.
• Start Time: Displays the date and time of notebook initiation.
• Modified Time: Displays the date and time of the last modification of the notebook.
• Action Tab: Allows users to perform 2 actions:
  • Edit: Enables users to edit the existing notebooks.
  • Disable: Allows users to disable the notebook. Users also have the option to re-enable the disabled notebook.

Manage

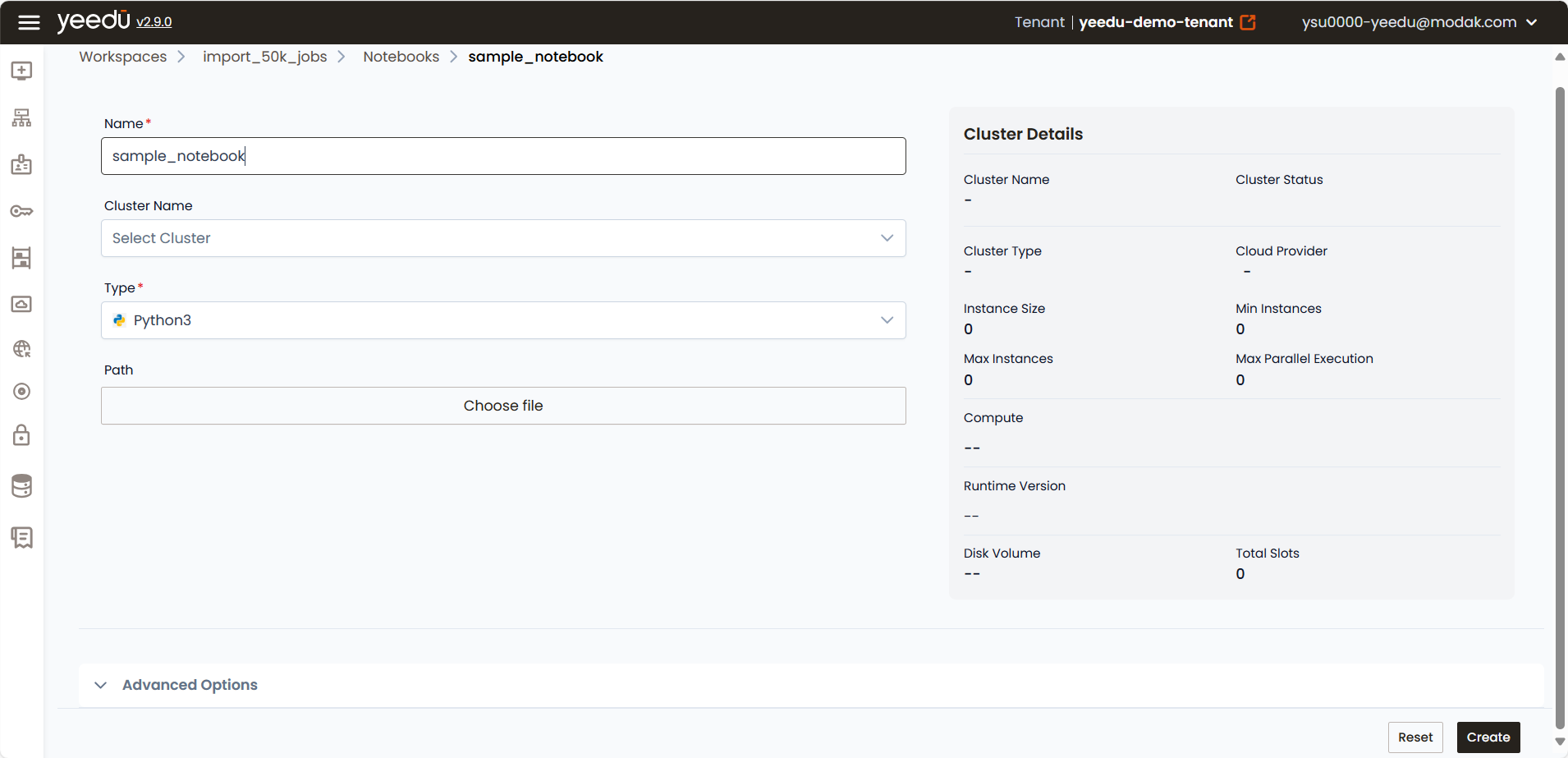

Create Notebook

On the right side of the notebook dashboard, users can find the '+ Notebook' icon located above the Action tab. This button is utilized for creating a new notebook. Upon clicking the '+ Notebook’ button, the Create Notebook window will pop up.

• Notebook Name: Input the name of the notebook in this field, ensuring it meets the following prerequisites:
  • Maximum length: 64 characters
  • Lowercase letters
  • Permitted symbols: '-', '_', '@', and '.'
• Type: Depending on the use case, select one of the two notebook types: Python3,Scala and Sql.
• Cluster Name: Select the cluster assigned to the workspace that best fits your requirements.
• Path: (Optional) Upload or reference a .ipynb file from Files.
• Advanced Options: Available only if Notebook Type is Python3. In Advanced Options, users can add additional configurations to the notebook such as packages, JARs, files, and configs.

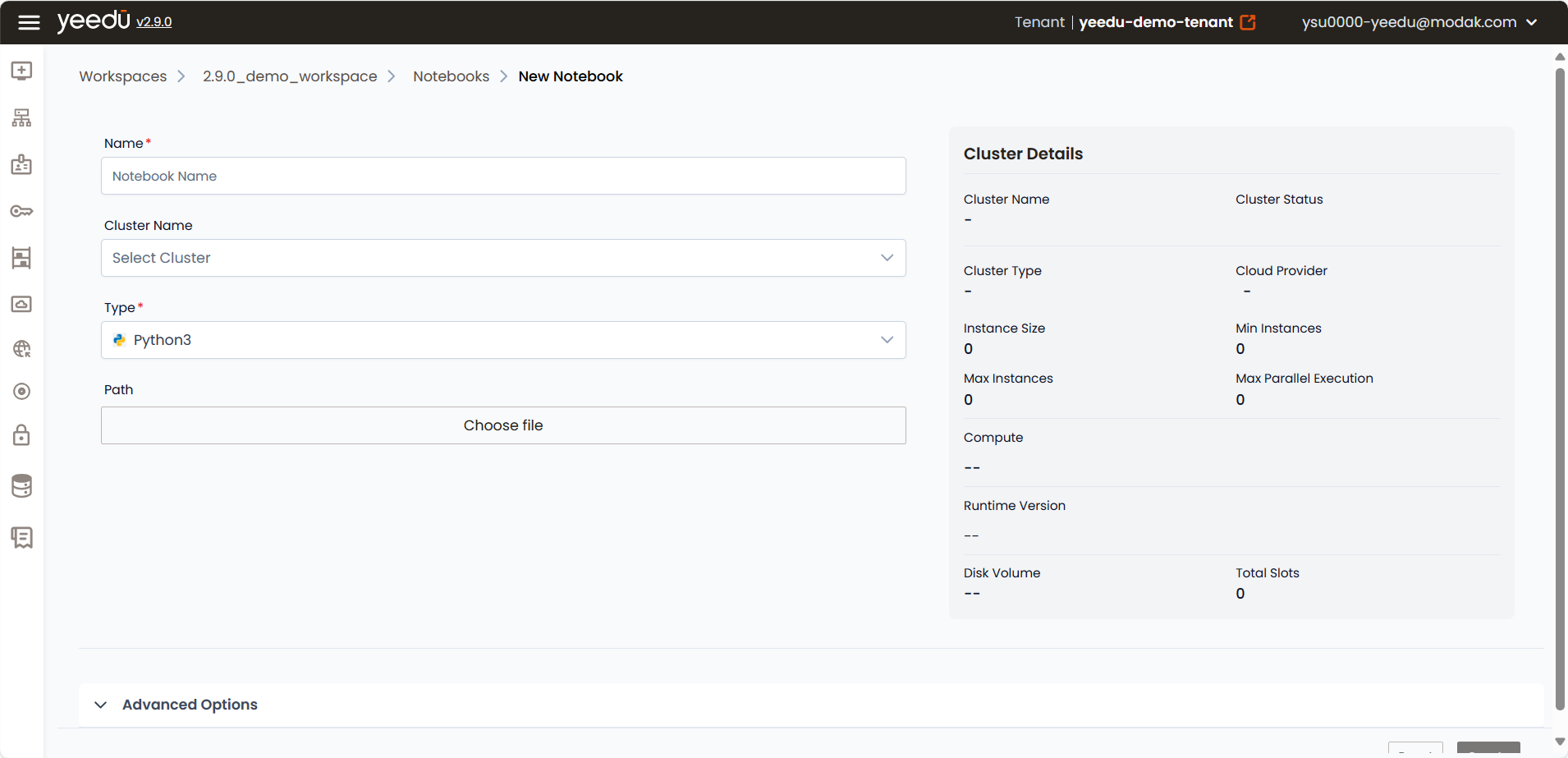

Path Field

The Path field allows you to:

• Select a .ipynb file from the Files section
• Organize notebooks more cleanly by referencing file system paths

When a new notebook is created without specifying a path, a .ipynb file with the provided notebook name is automatically generated under the notebooks/ folder within the workspace files section. If the notebooks folder does not already exist, it is automatically created during this process.

Users can create notebooks from existing .ipynb files using the Path option. Each notebook is uniquely linked to a single file in the workspace.

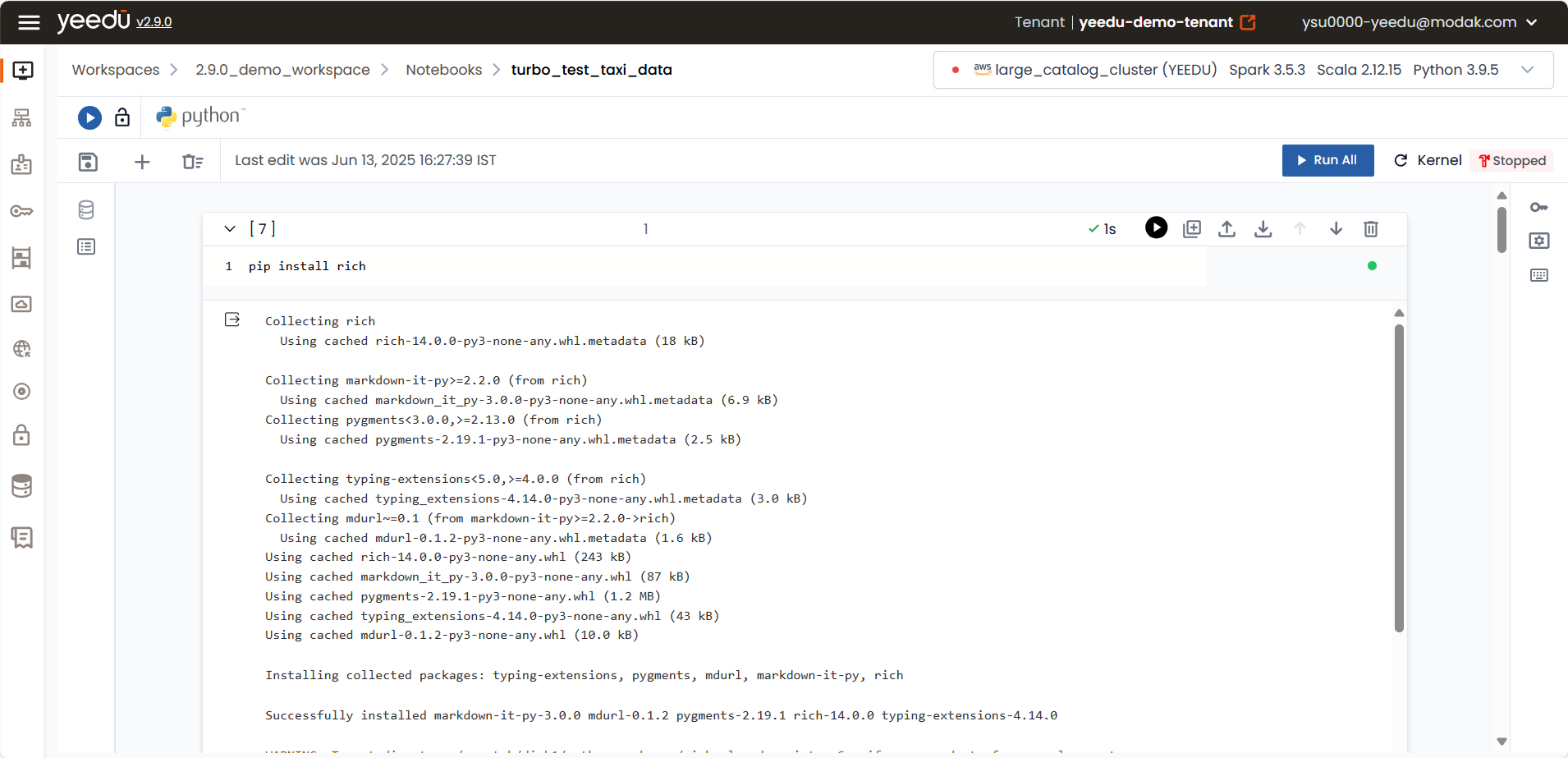

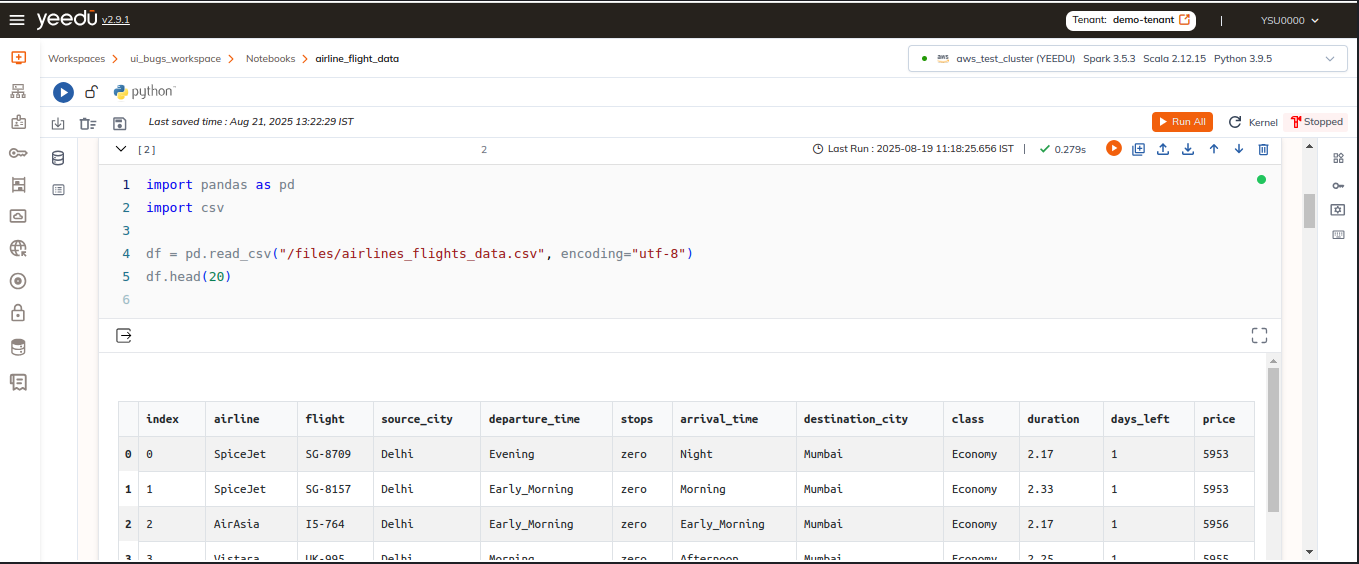

View Notebook

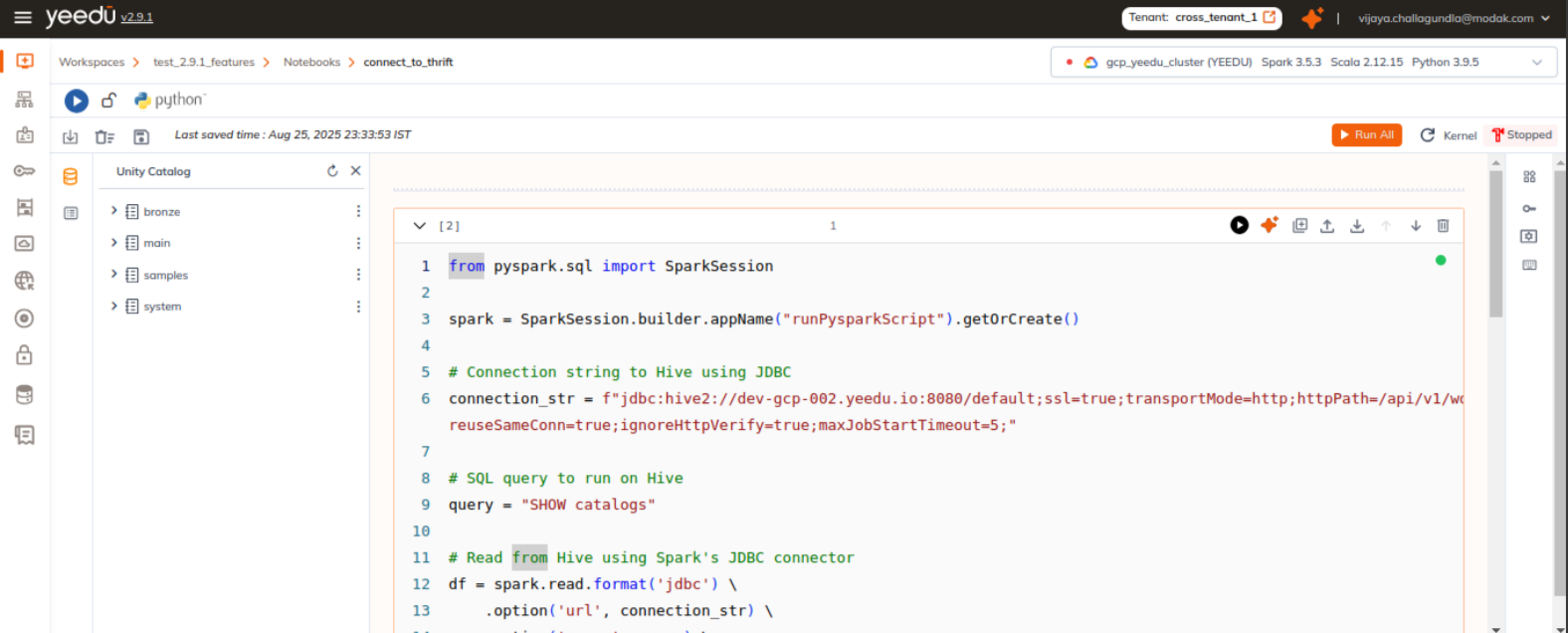

Within the Notebook, users can create cells containing either Python3 or Scala code based on their needs. Clusters can be selected from the dropdown menu on the right side of the screen, where users can also monitor the status of the Spark session and Kernel status. Progress in the notebook is automatically saved, with an option for manual saving available. Users can create multiple cells and clone existing ones. Cells in the Notebook can be executed individually, or users can run all cells simultaneously.

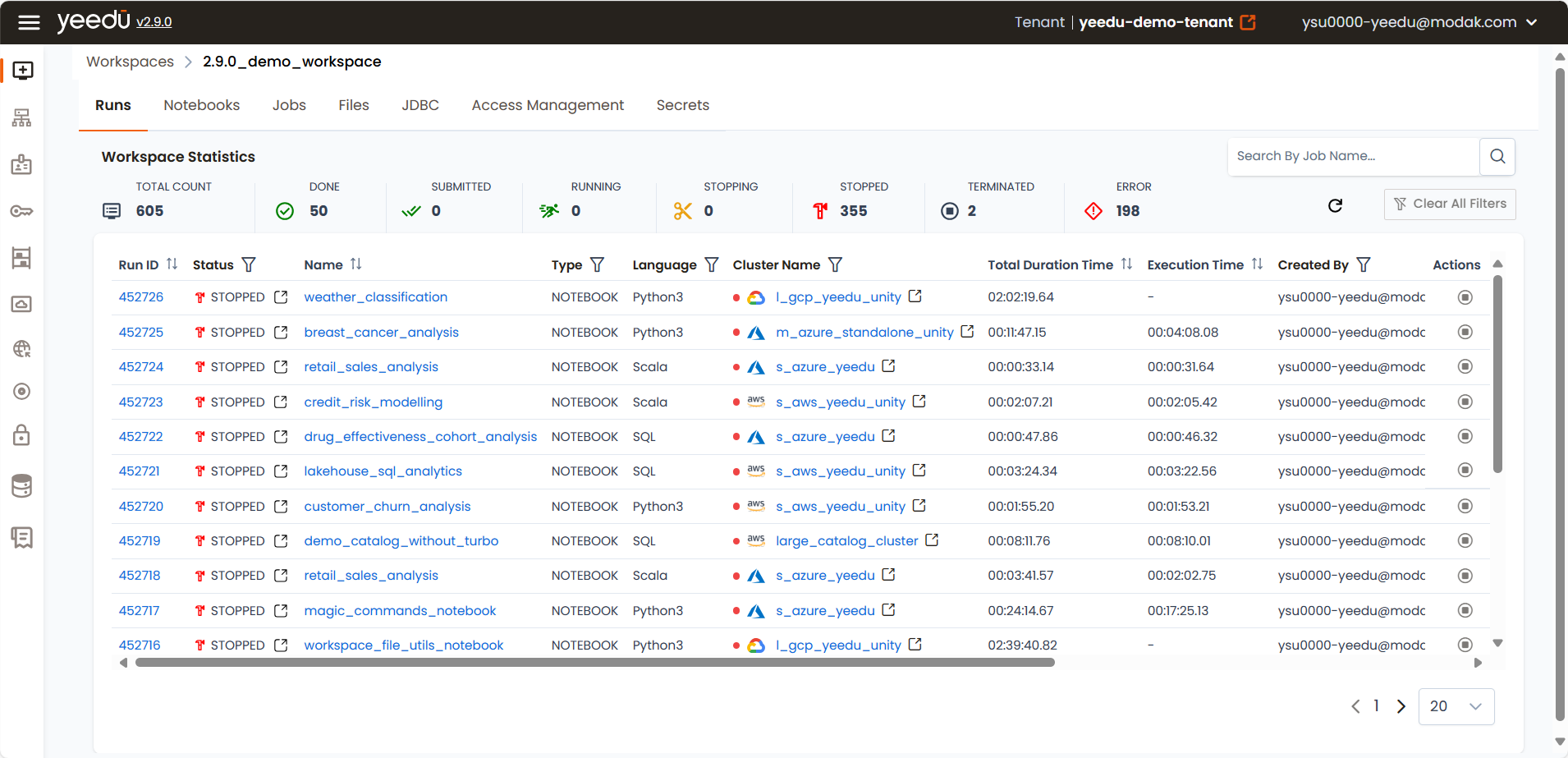

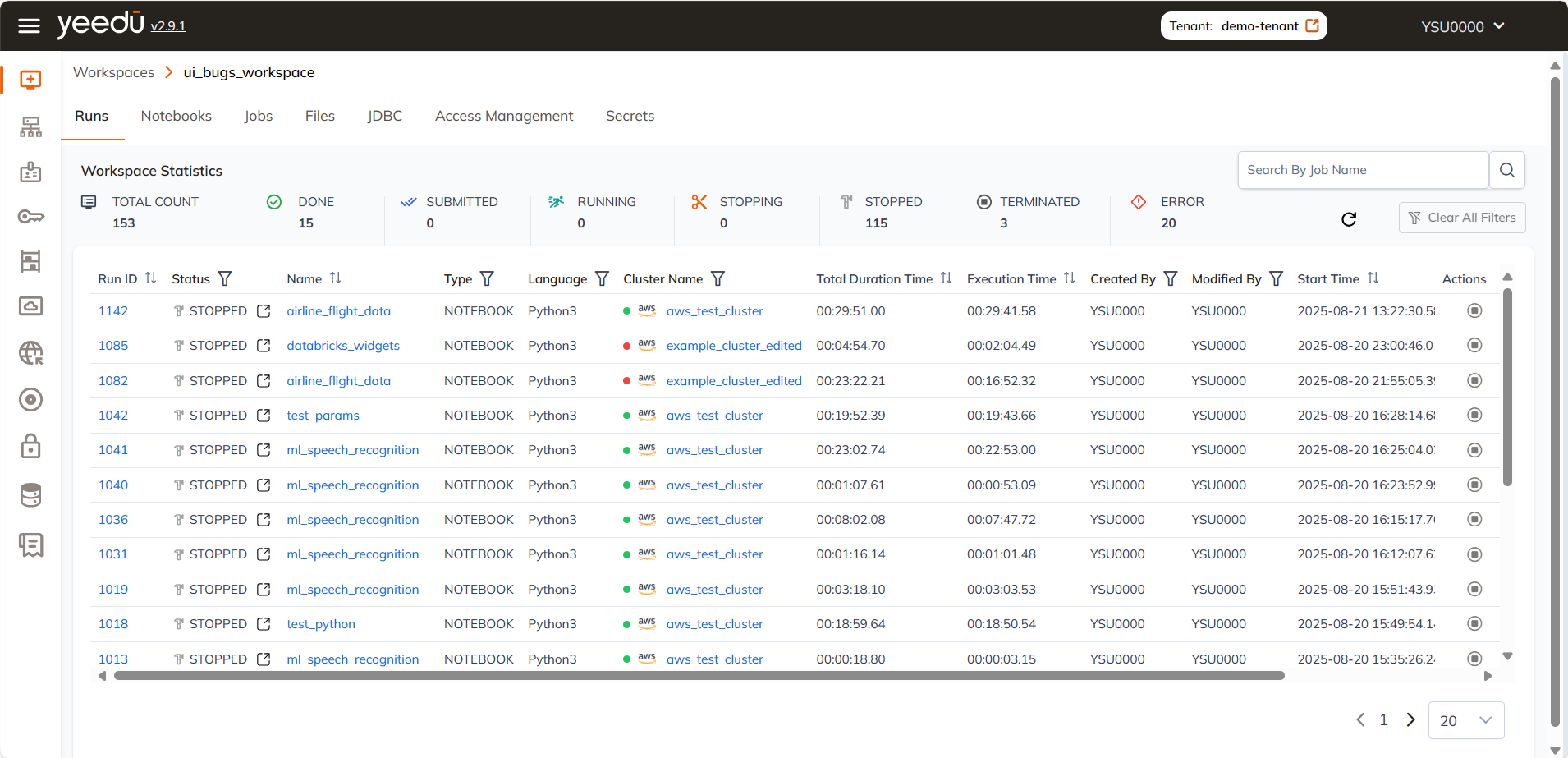

Runs

The Runs tab within the Workspace presents information about all job runs, following the same layout as other tabs in the workspace. It includes details such as Run ID, Status, Name, Type, Cluster Name, Duration, Created Time, Modified Time, Start Time, End Time, and an Action tab.

• Run ID: Unique identifier associated with the job run.
• Status: Indicates the status of the run, categorized as "Done," "Running," "Error," or "Stop."
• Name: Name of the Job or Notebook in the runs.
• Type: Displays the type of job.
• Cluster Name: Displays the name of the cluster associated with the run. Users can hover over the cluster name to view basic cluster configurations.
• Duration: Displays the total time taken for the run to complete.
• Created By: Displays the name of the user who created the run.
• Modified By: Displays the name of the user who last modified the run.
• Start Time: Displays the date and time when the run started.
• End Time: Displays the date and time when the run ended.
• Action Tab: Allows users to stop the job if it's in a running state.

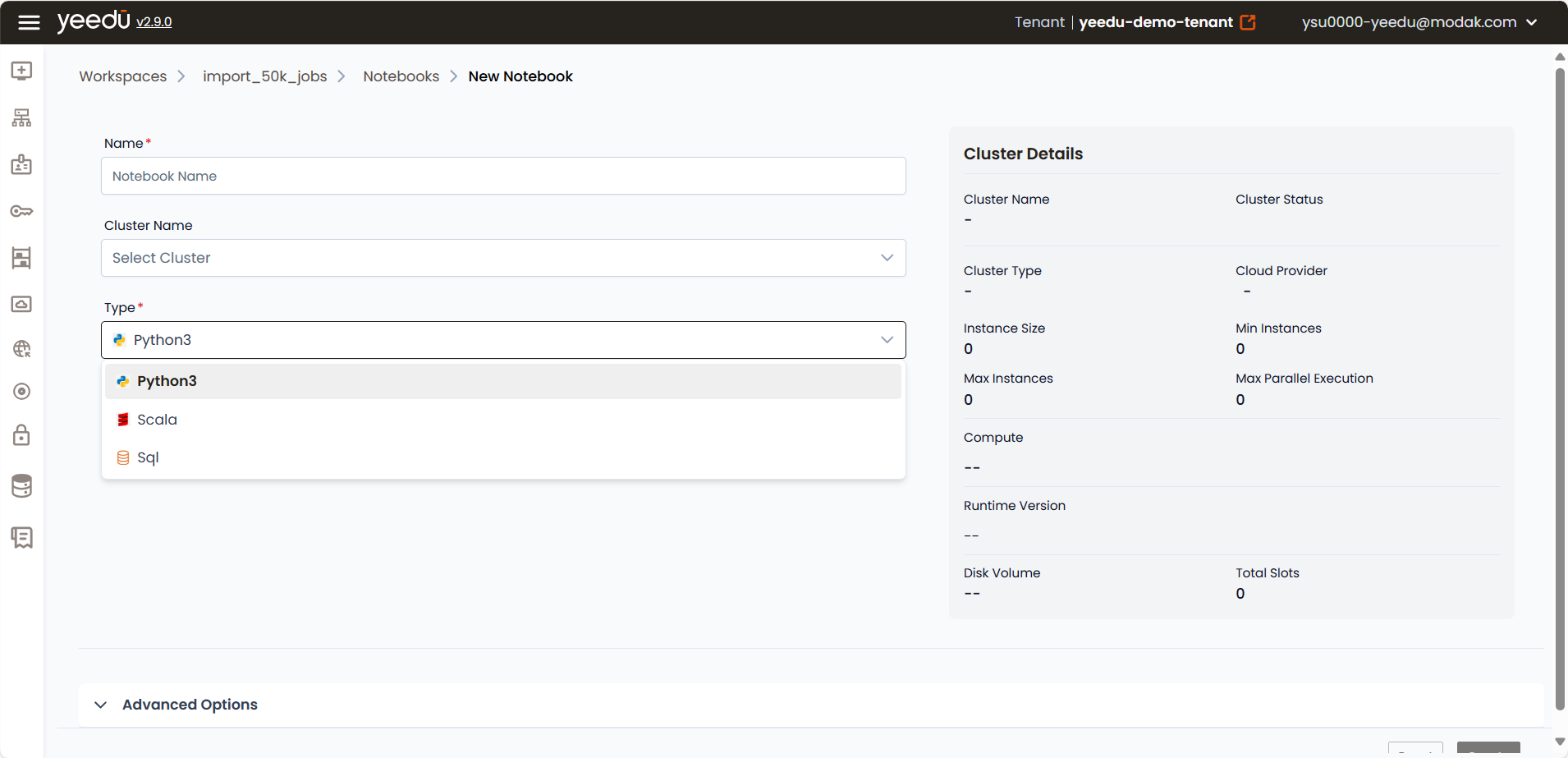

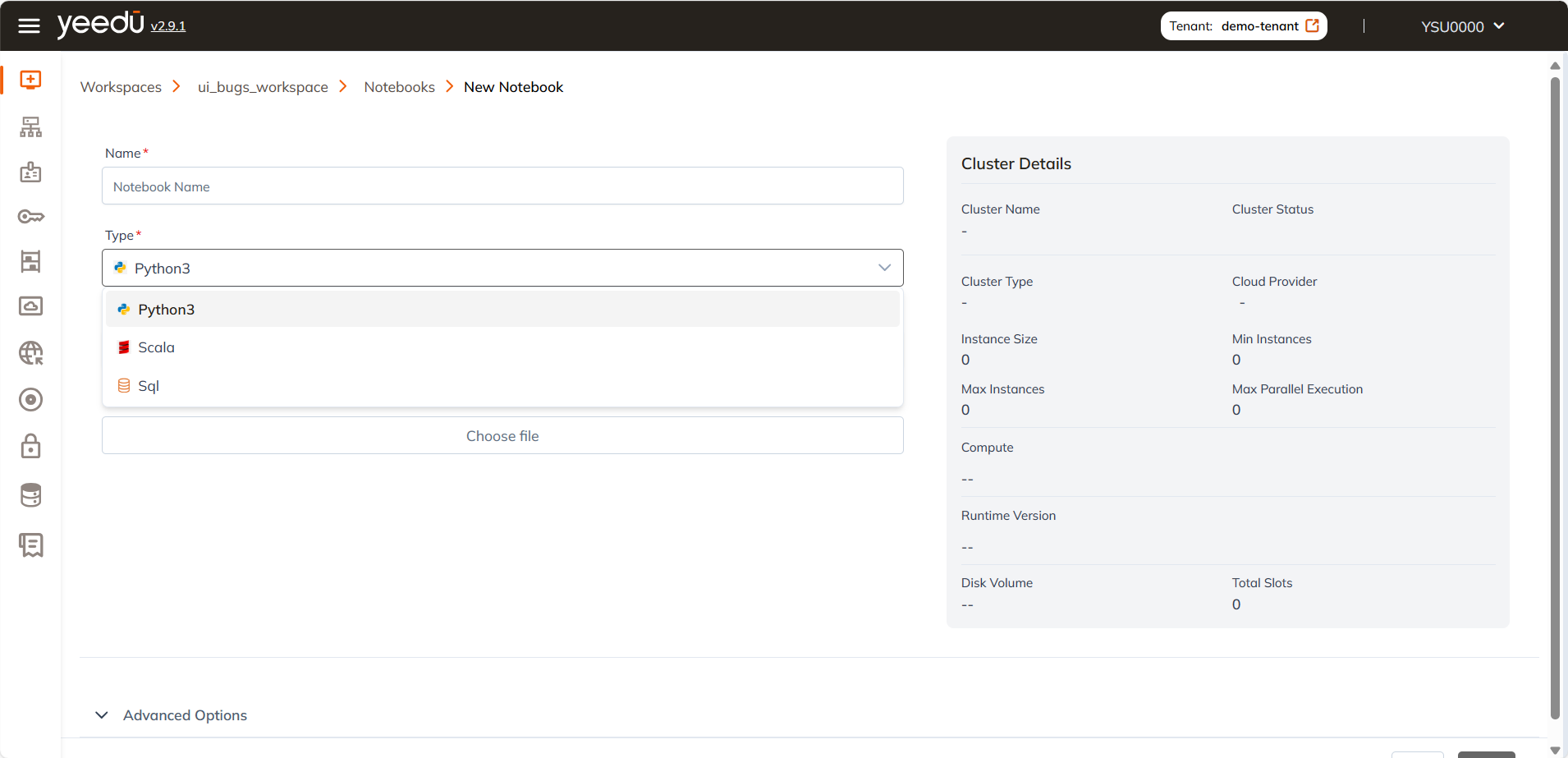

Notebook Types

When creating a notebook in Yeedu, users can choose from three notebook types, each tailored for specific workloads:

Available Types

1. Python3
2. Scala
3. SQL

Choosing the Right Type

Goal	Recommended Type
Interactive data analysis	Python3
Large-scale Spark transformation	Scala
Fast querying of tables	SQL

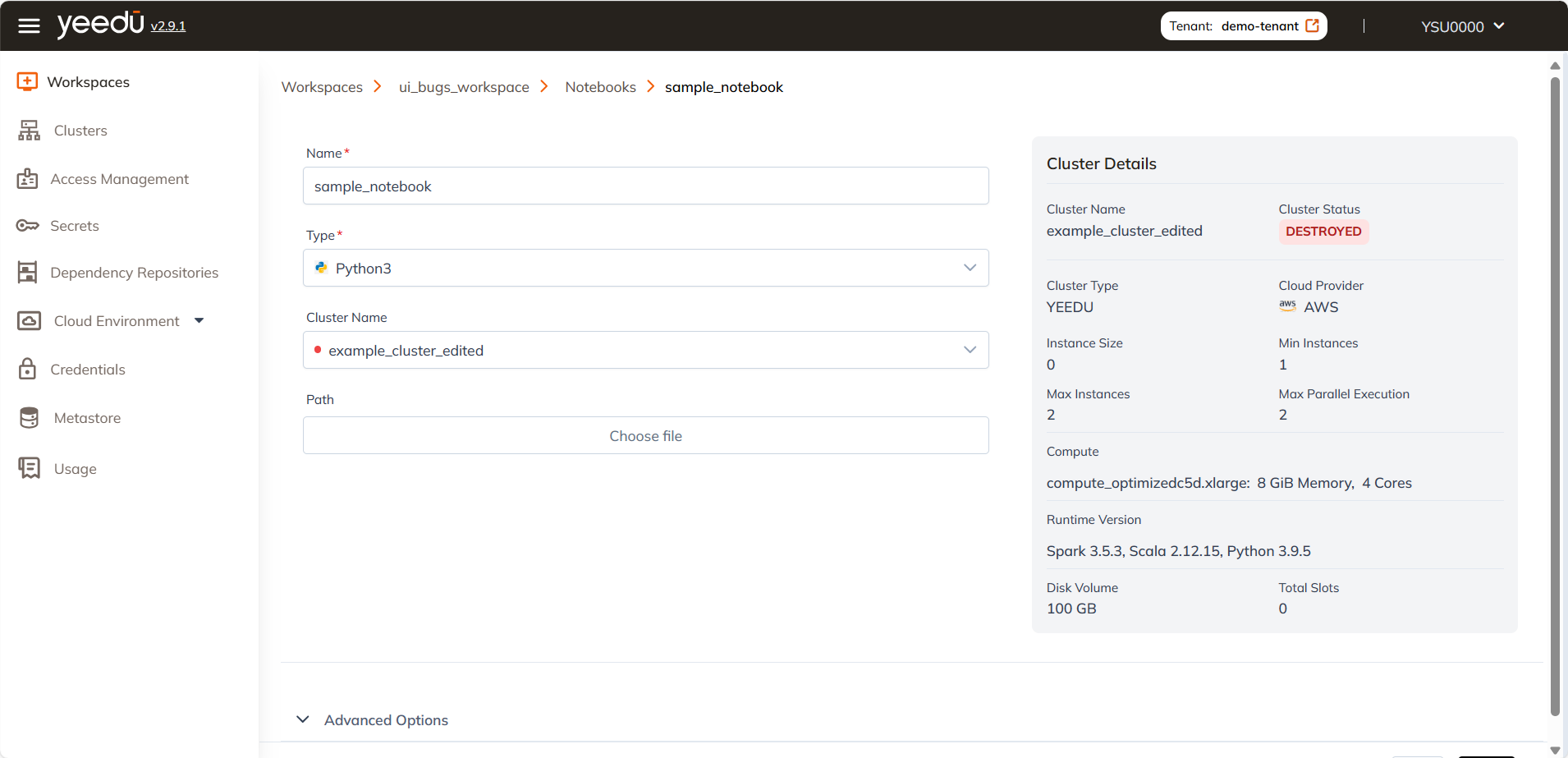

Path (Optional)

The Path field allows you to upload or reference an existing .ipynb file during notebook creation.

• If you create a notebook without providing a file path, a new .ipynb file with the notebook name will be created inside the Notebooks folder under Workspace Files.

• If you want to use an existing code, you can upload a .ipynb file to Workspace Files and specify its path during notebook creation.

note

The recommended resolution for Yeedu UI is 1920 x 1080.
